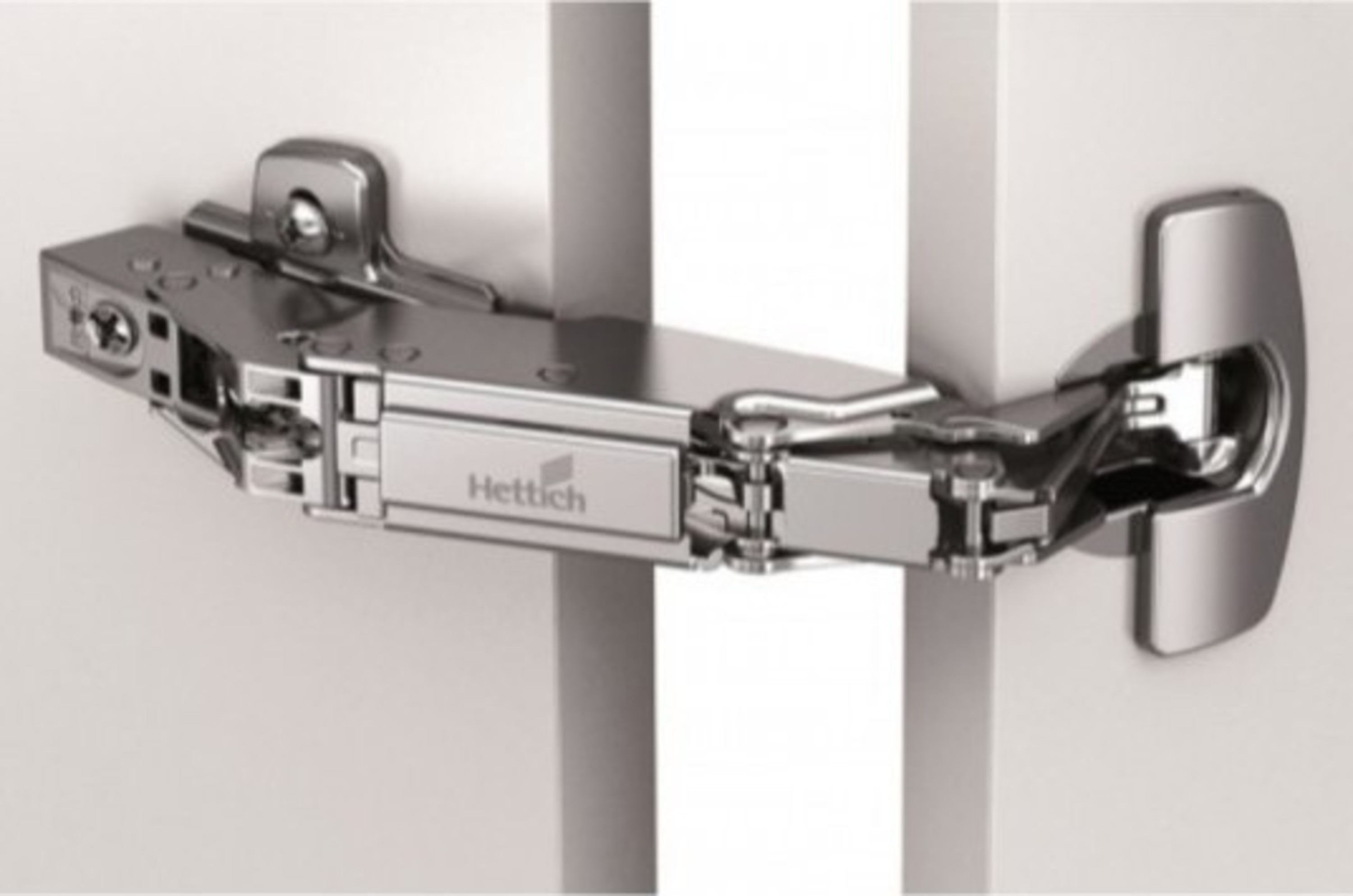

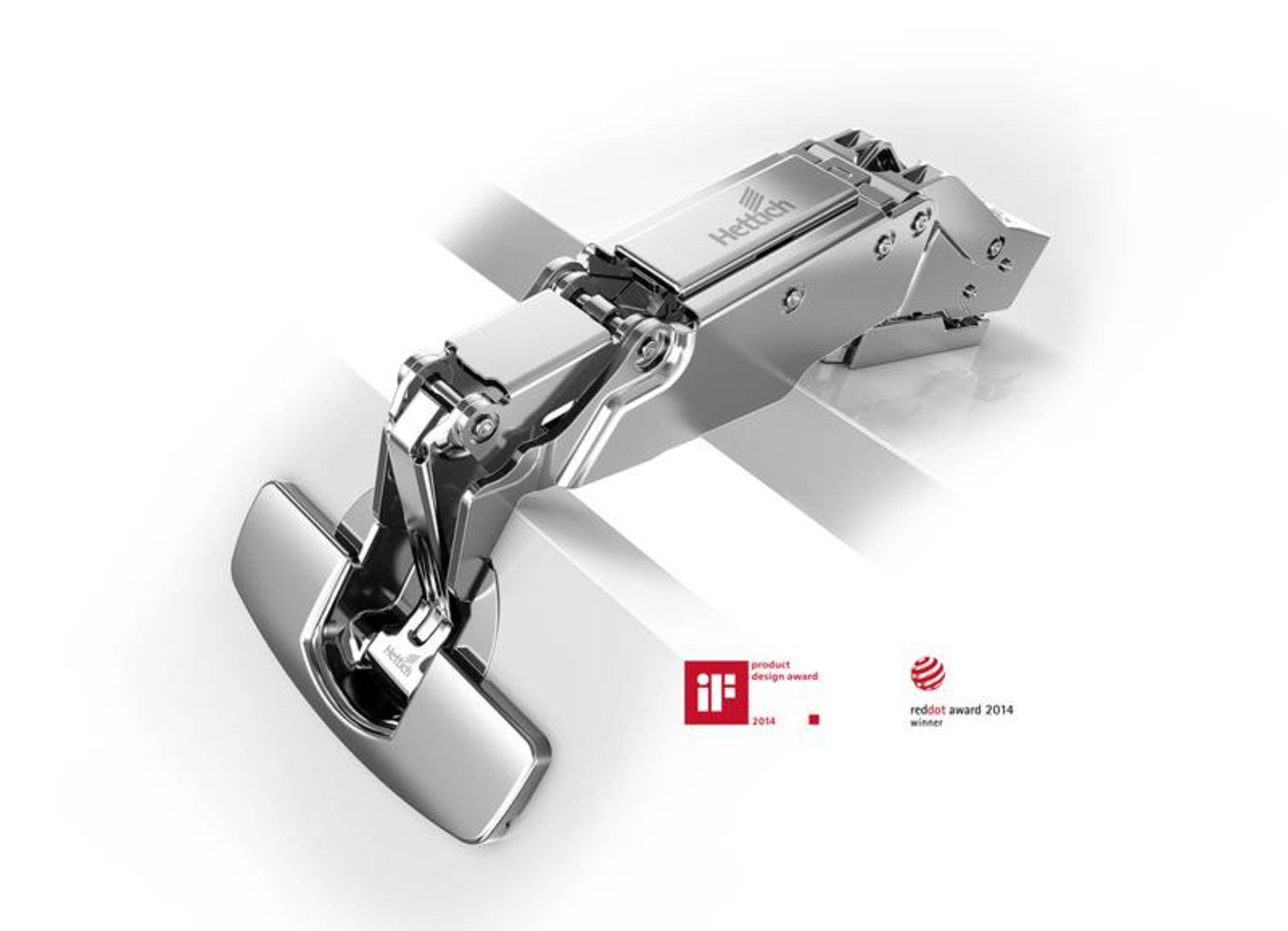

Providing an opening angle of 165 degrees, the Sensys wide angle hinge gives furniture doors a wide opening angle and closes them evenly and gently. Zero-protrusion hinges make it possible to fit internal drawers without spacer profiles, preventing trapped fingers no matter what position the door is in.
Concealed hinge with clip on installation and integrated Silent System Quality classification under EN 15570, Level 3 For door thickness of 15 – 32 mm Cup diameter 35 mm Cup depth 11.6 mm Integrated +/- 2 mm overlay adjustment Integrated depth adjustment + 3 mm / - 2 mm Height adjustment at mounting plate Opening angle can be reduced by means of optional accessories Zero protrusion hinge Hinge arm material: steel, nickel plated Hinge cup material: steel, nickel plated
