Air Hinges

Despites its compactness and small size, Air delivers full functionality to furniture manufacturers.

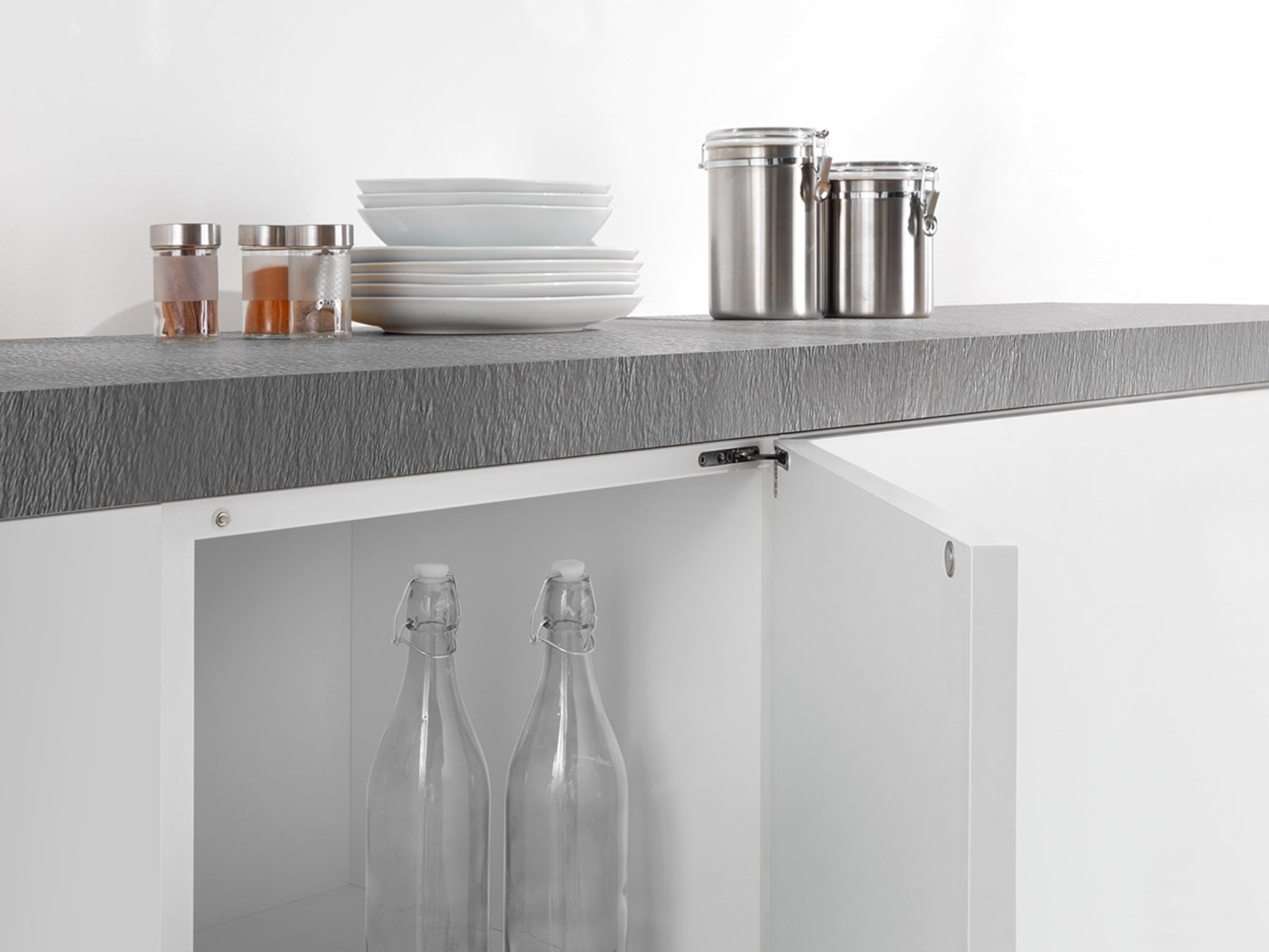

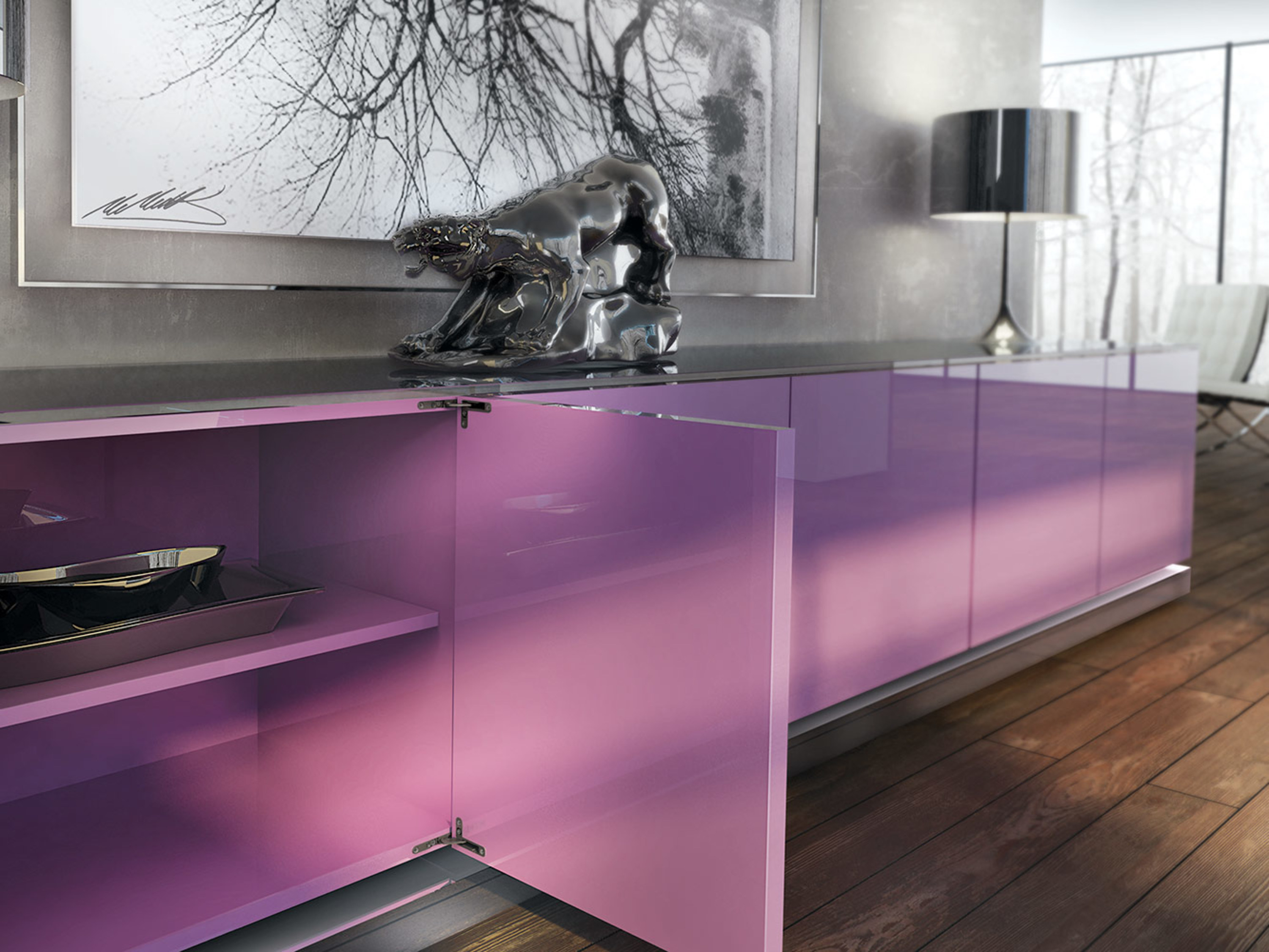

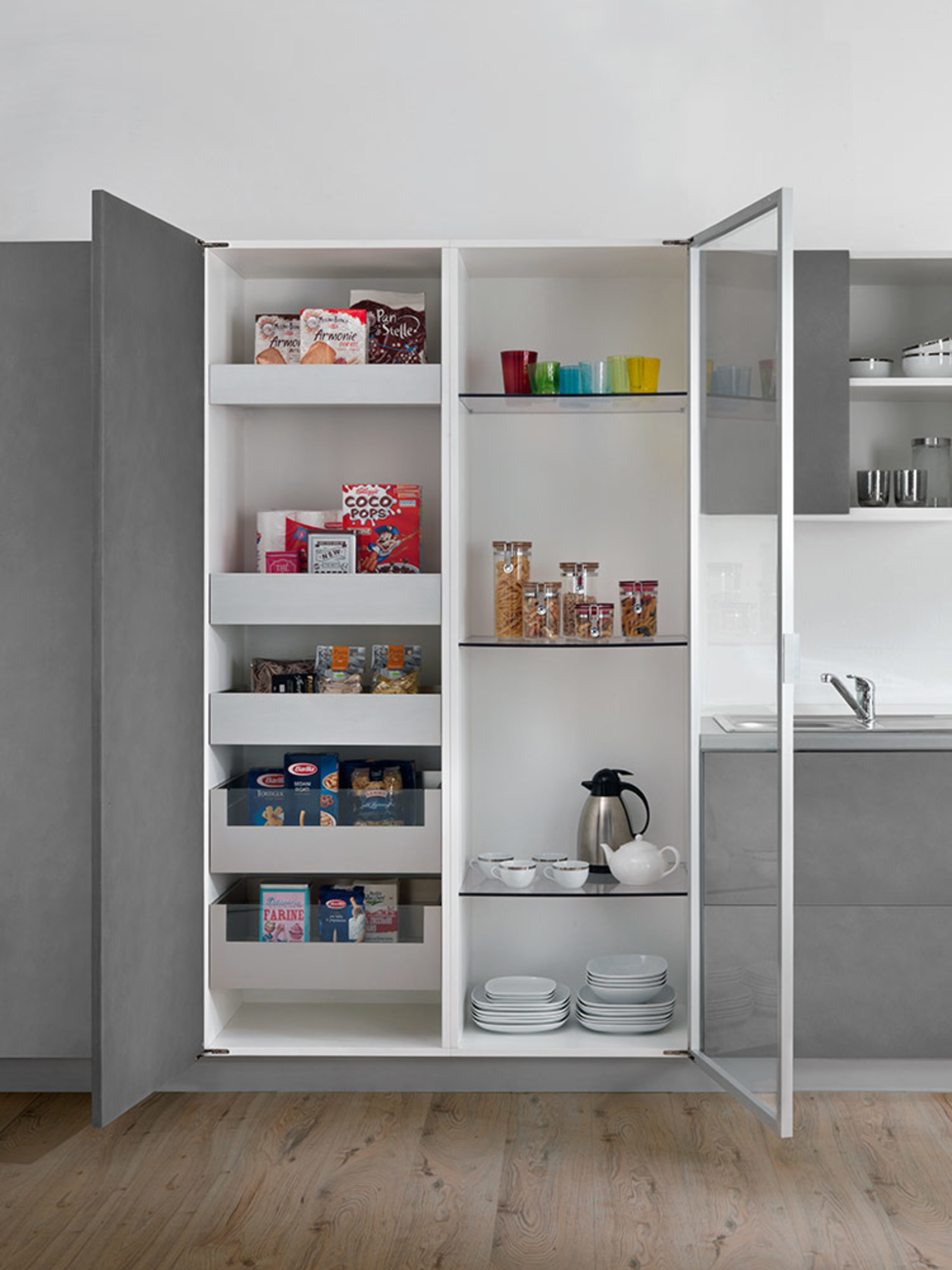

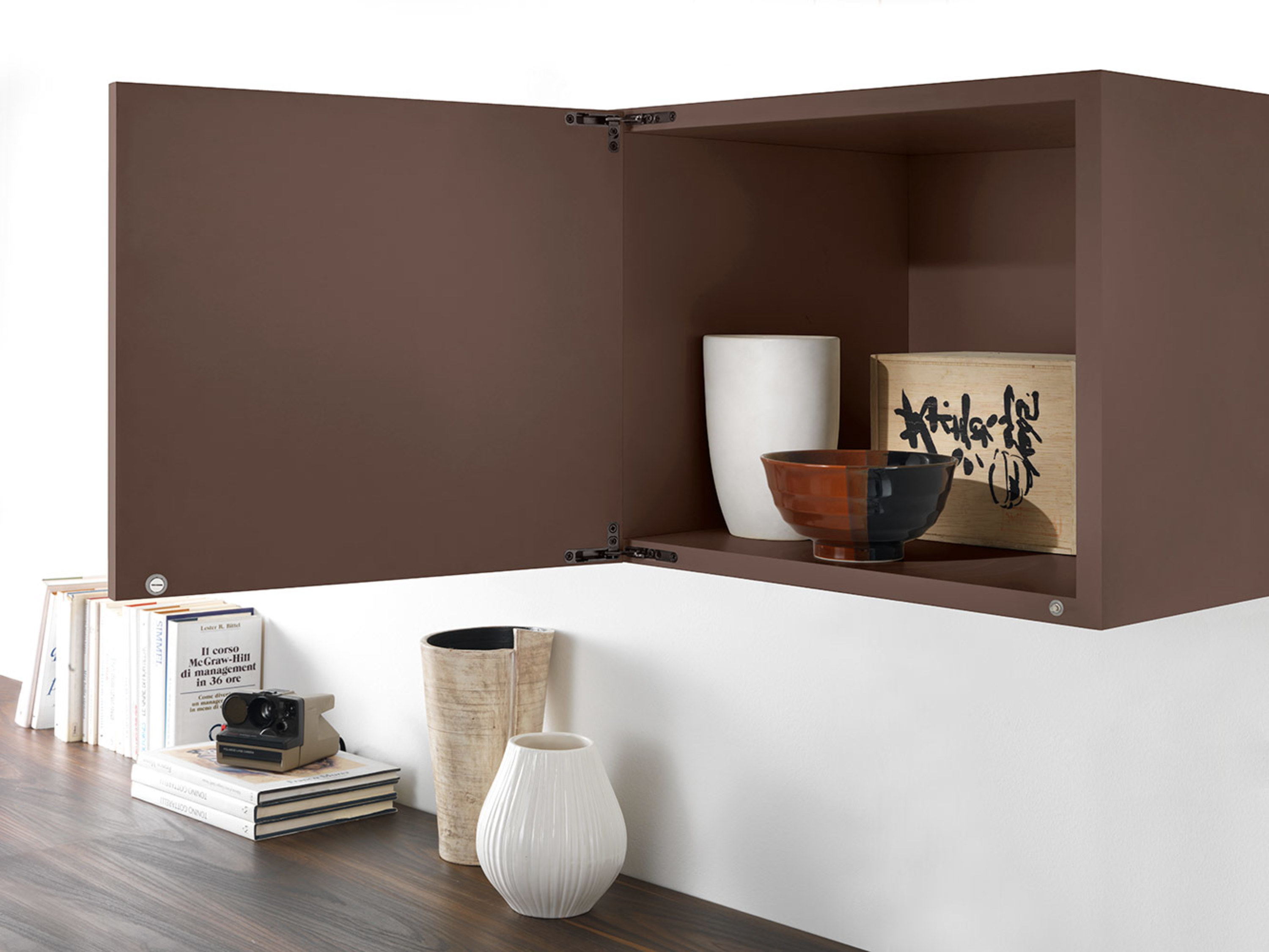

It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets.



  • The hinge is characterised by compactness and by a small size; it incorporates an integrated soft close mechanism for decelerated closing.

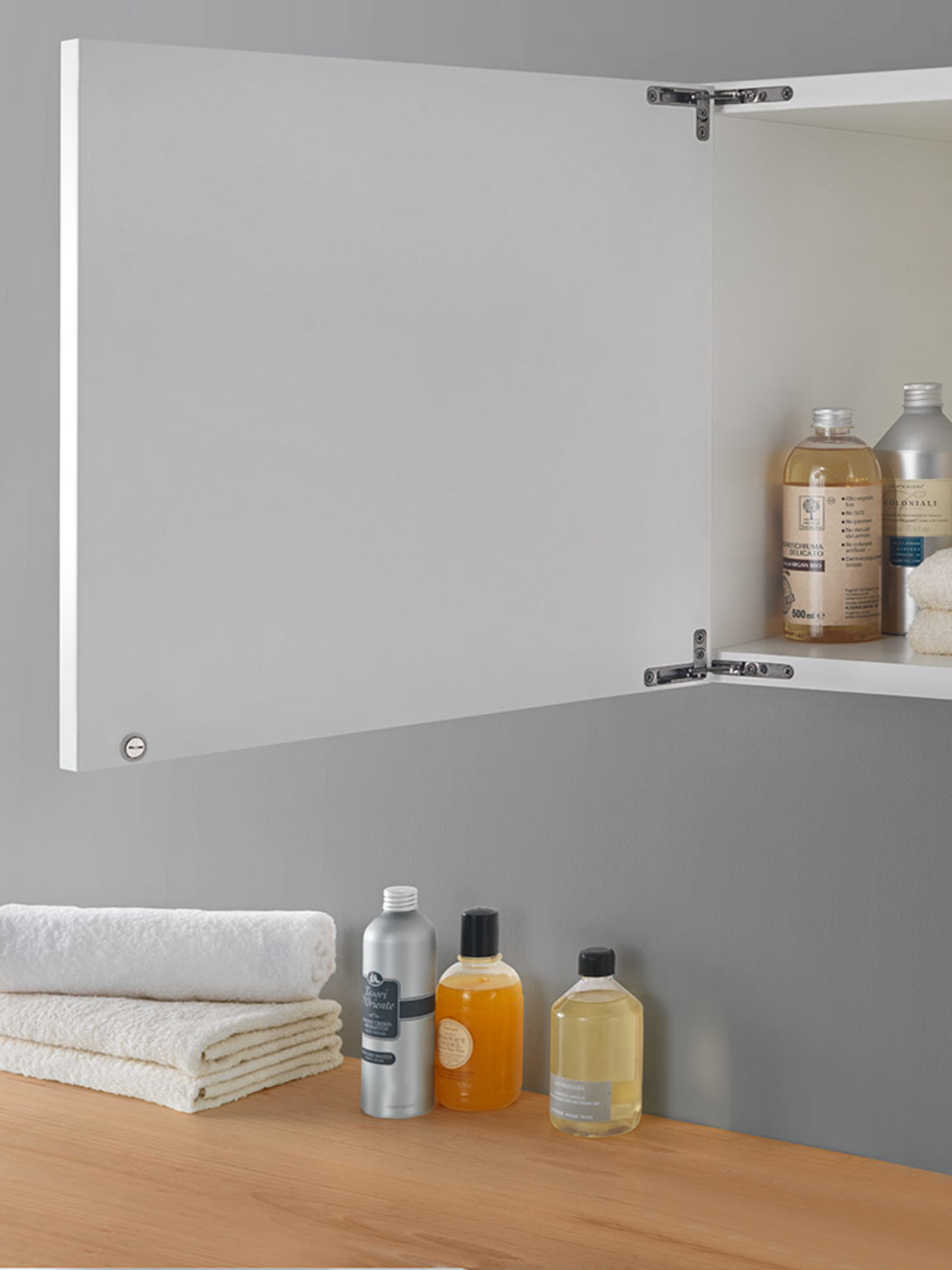

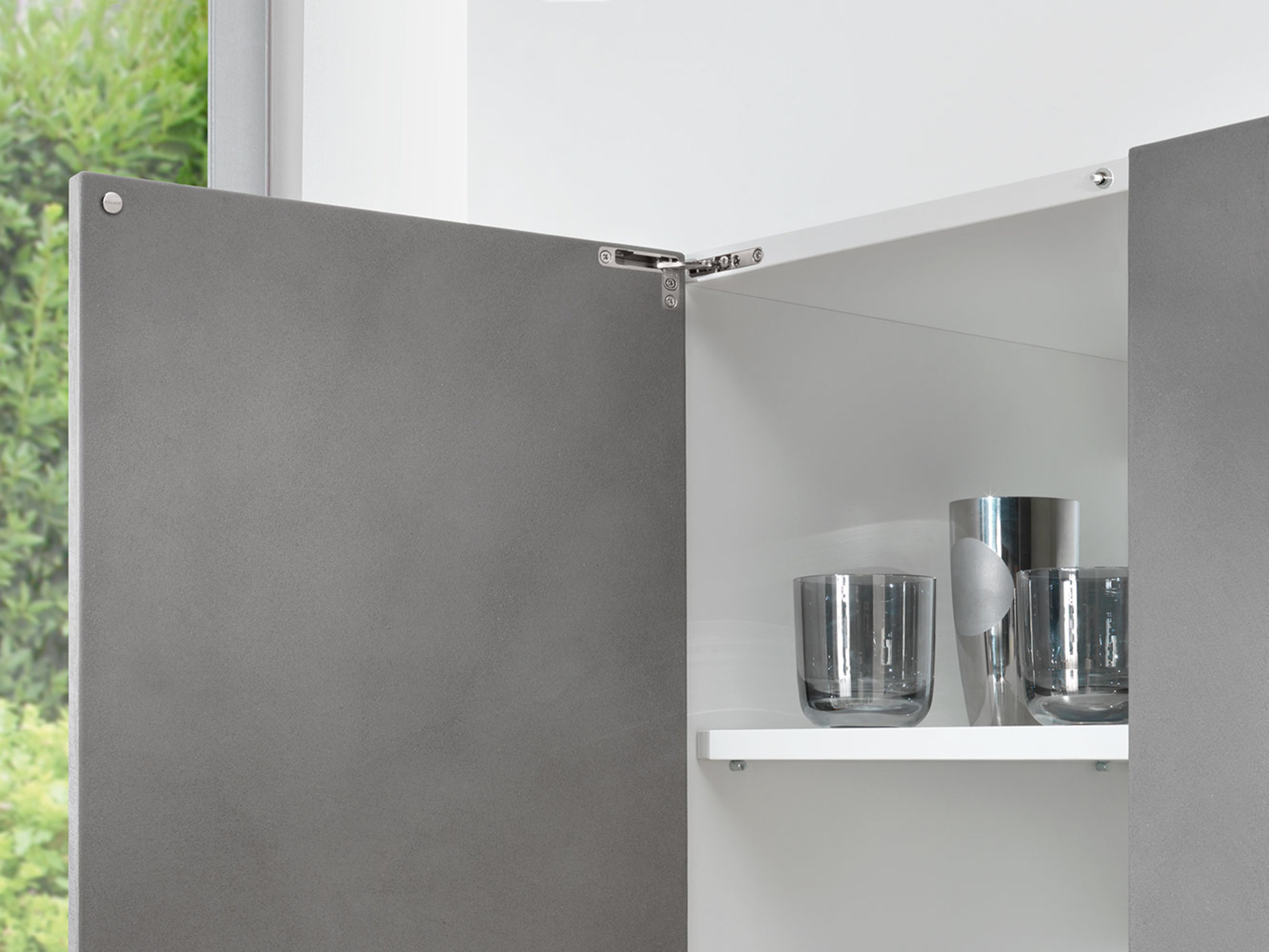

  • It is fitted to the top and bottom panel of the cabinet.

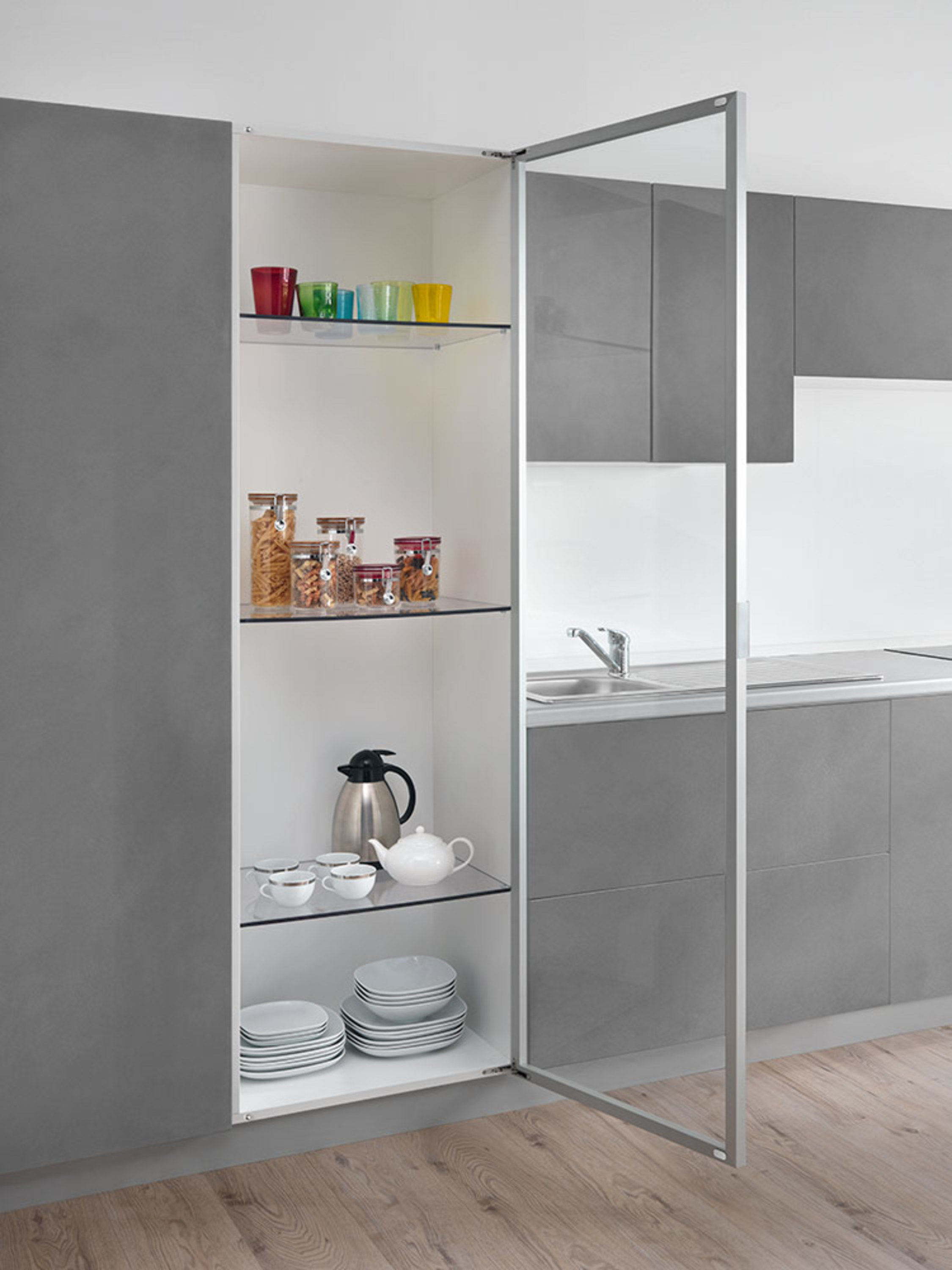

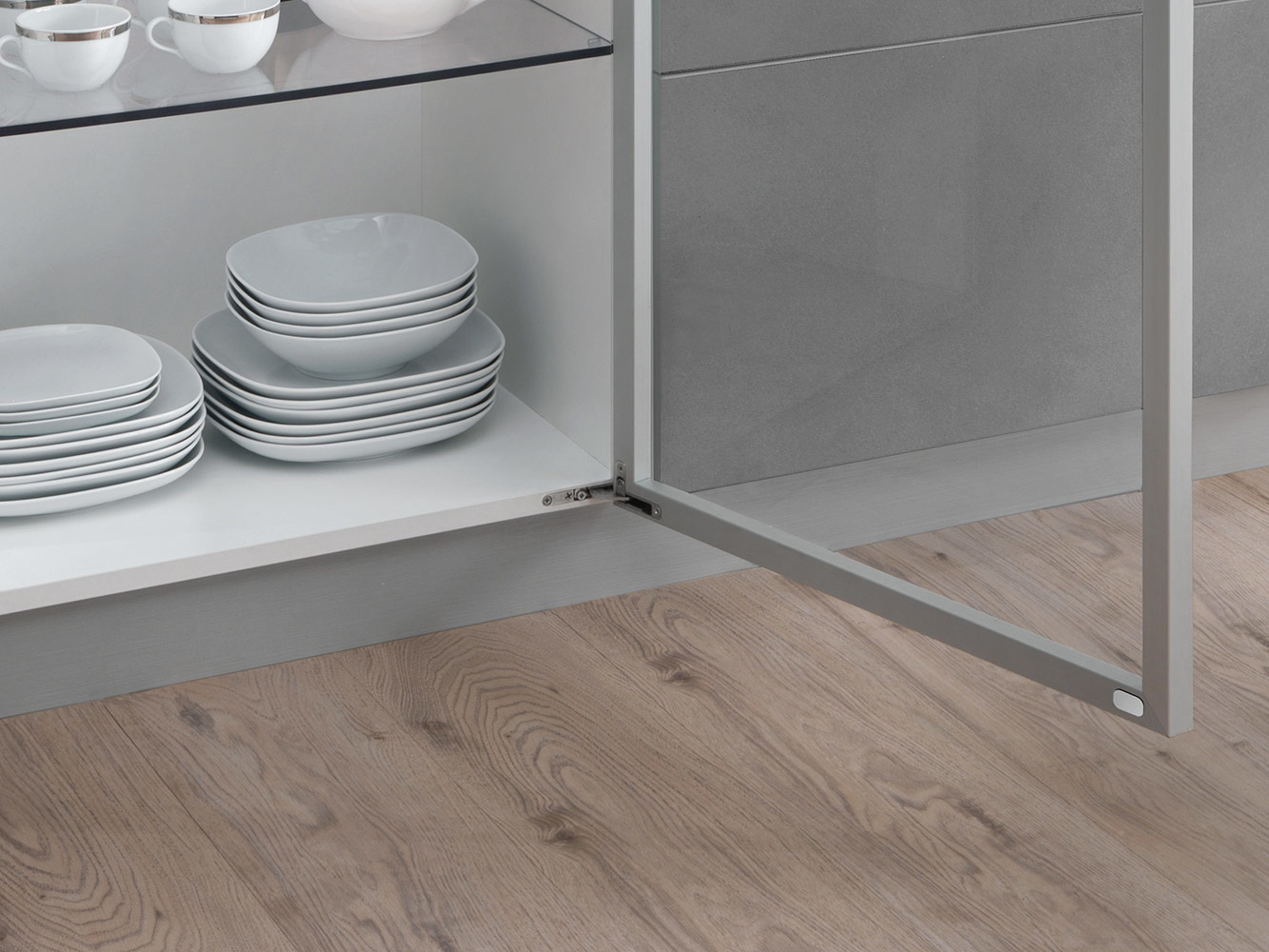

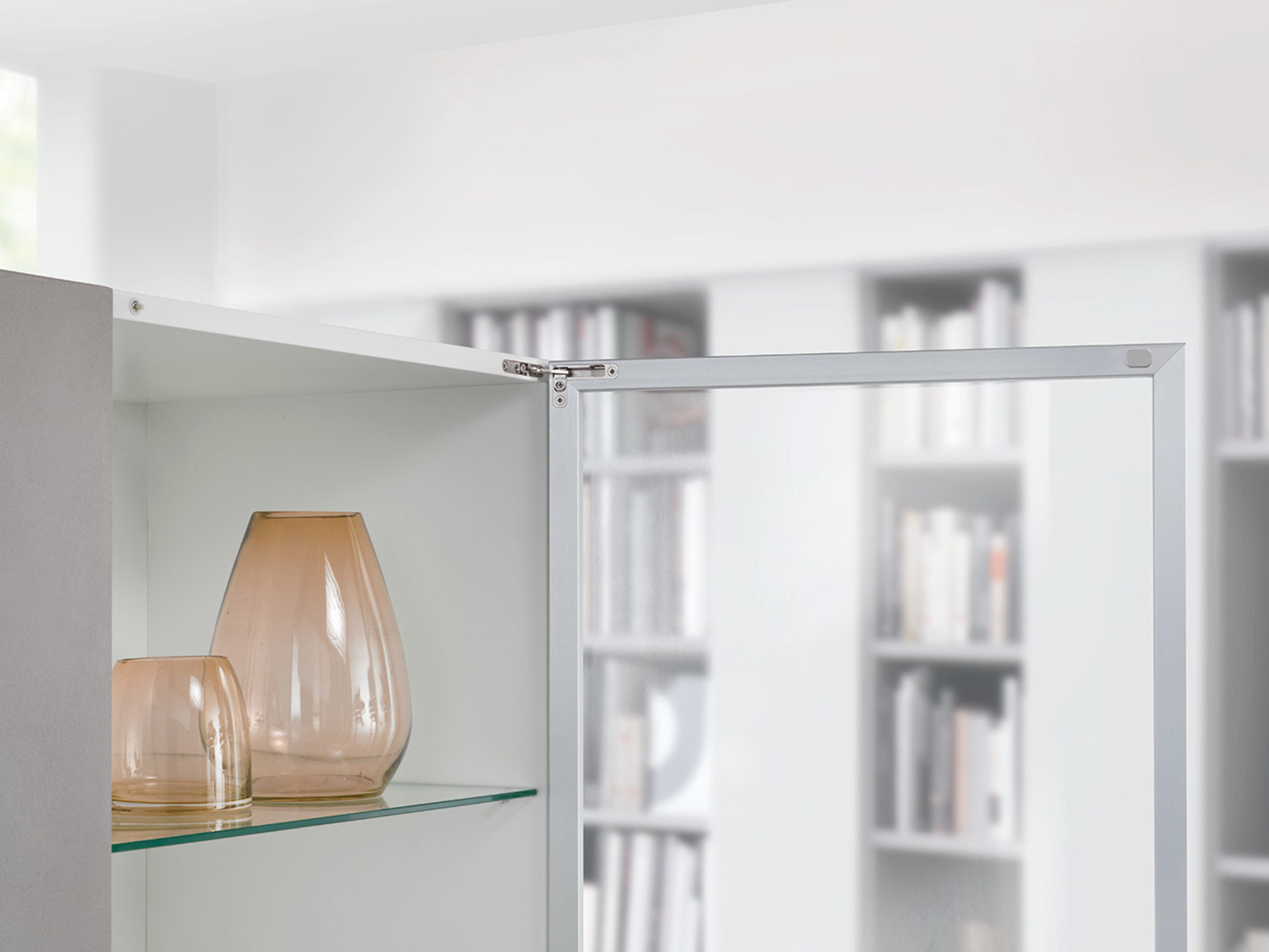

  • For min. 18 mm thick wooden doors and for aluminium-framed doors.

  • Max. door weight 25 Kg.

  • Max. dimensions of the door : height 2700 mm, width 600 mm.

  • 16.5 mm deep metal cup.

  • L = 2.5 mm

  • 105° opening.

  • Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors.

  • Fixed K = 4 mm for aluminium-framed doors.
