Flap Fittings

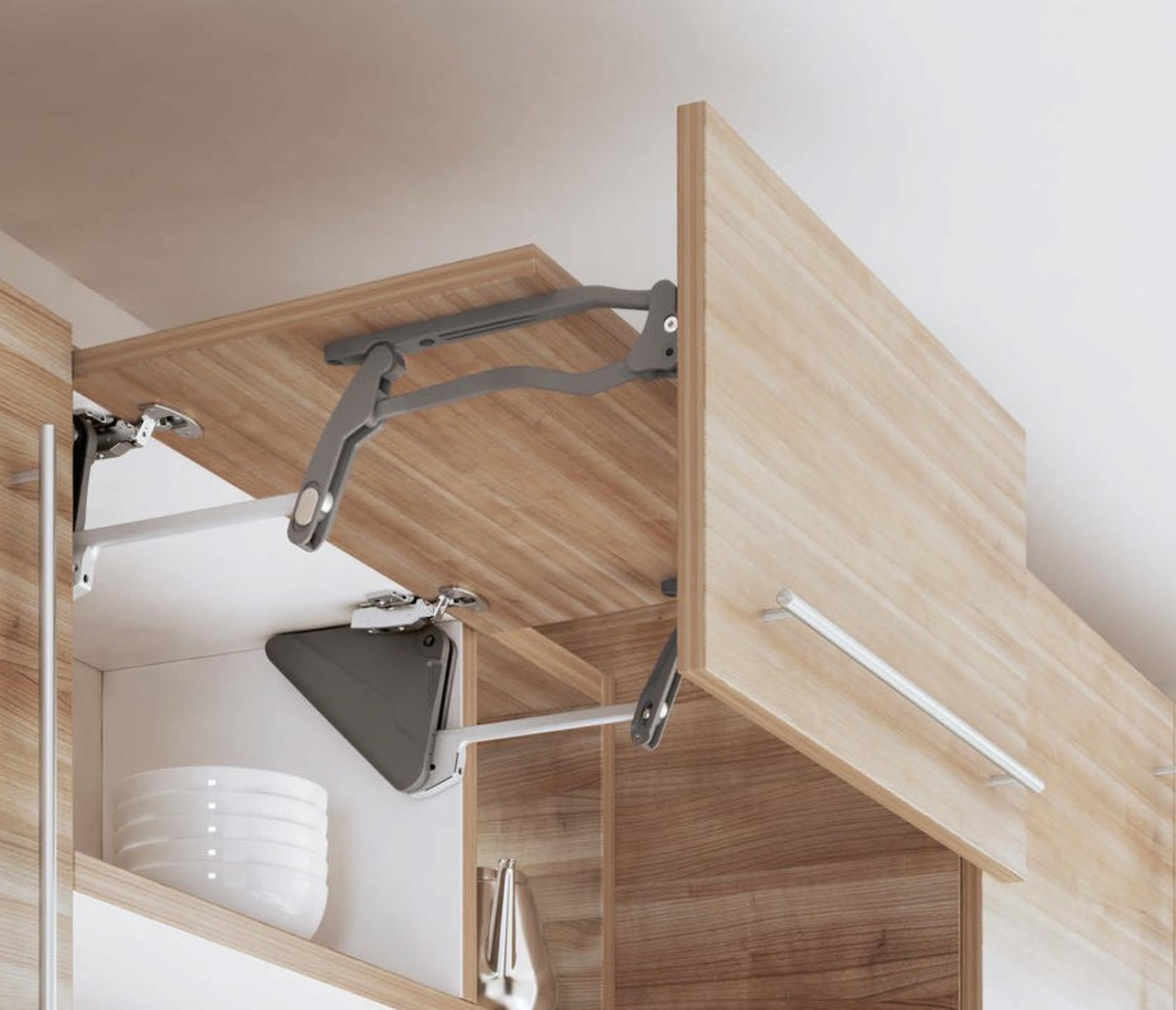

Lift Advance HF

• For wooden fronts or framed wooden fronts or fronts with 19 mm wide aluminium profile • • • Silent System integrated – soft-closing action
• Flap weight including handle 3.8 – 15.4 kg (gas springs must be ordered separately
• Flaps of unequal height can be selected for an internal carcase height of 490 mm and over
• It is recommended to use fast-assembly concealed hinges with an opening angle of at          least 110°, e.g. Sensys 8645i or Intermat 9943
• Three-dimensional front adjustment: vertical ± 2 mm, horizontal ± 2 mm, tilt / depth ± 2 mm
