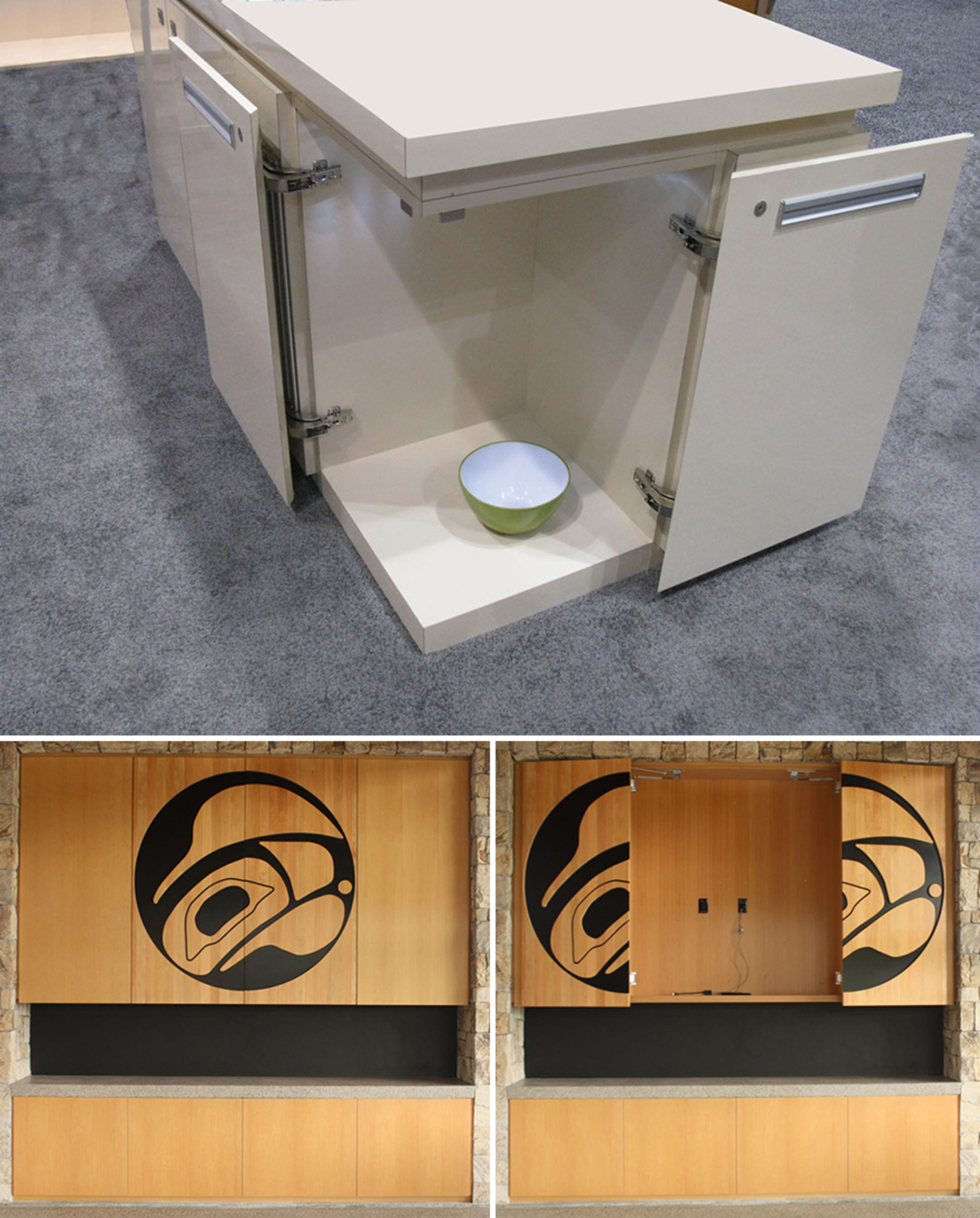

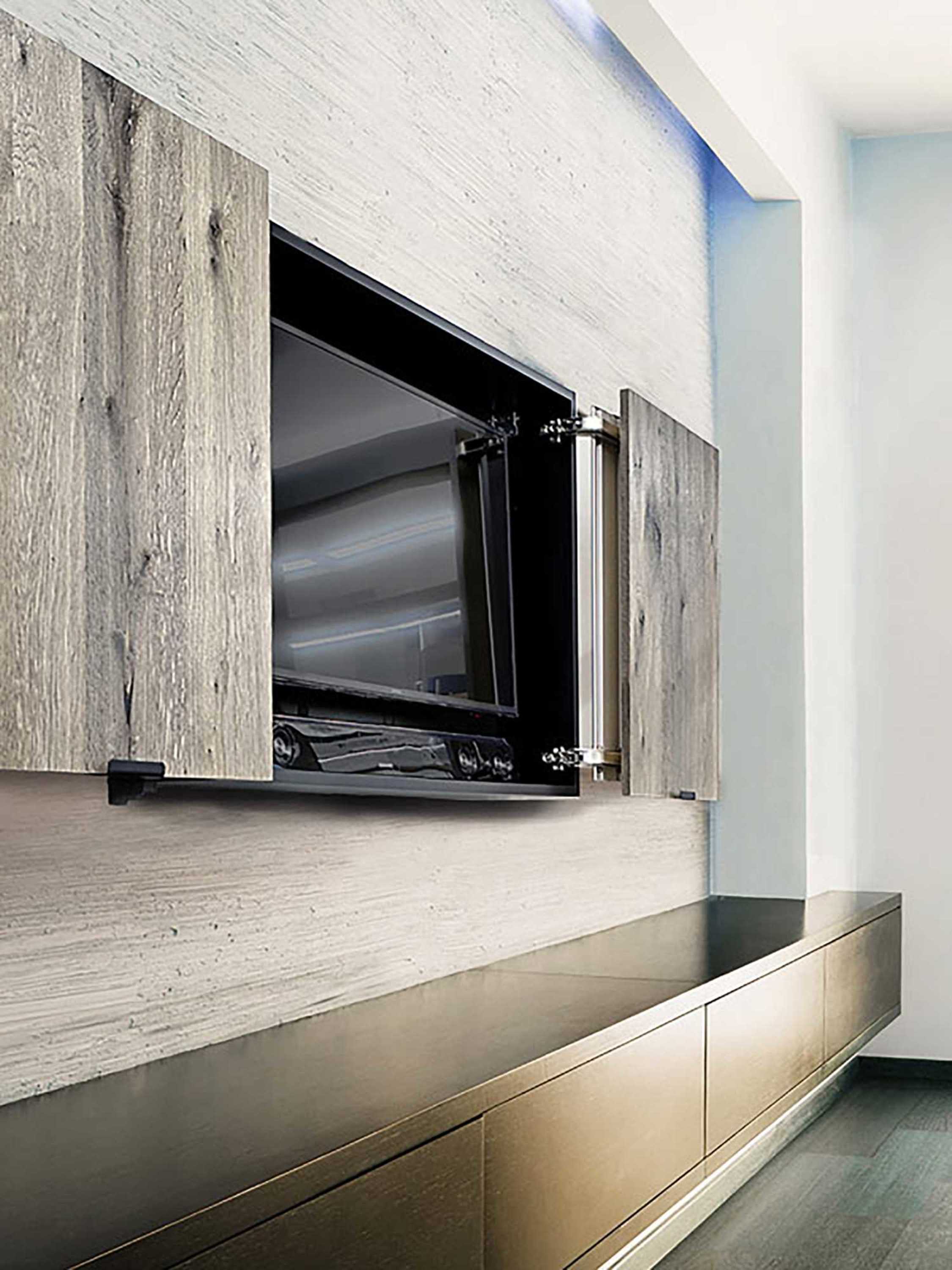

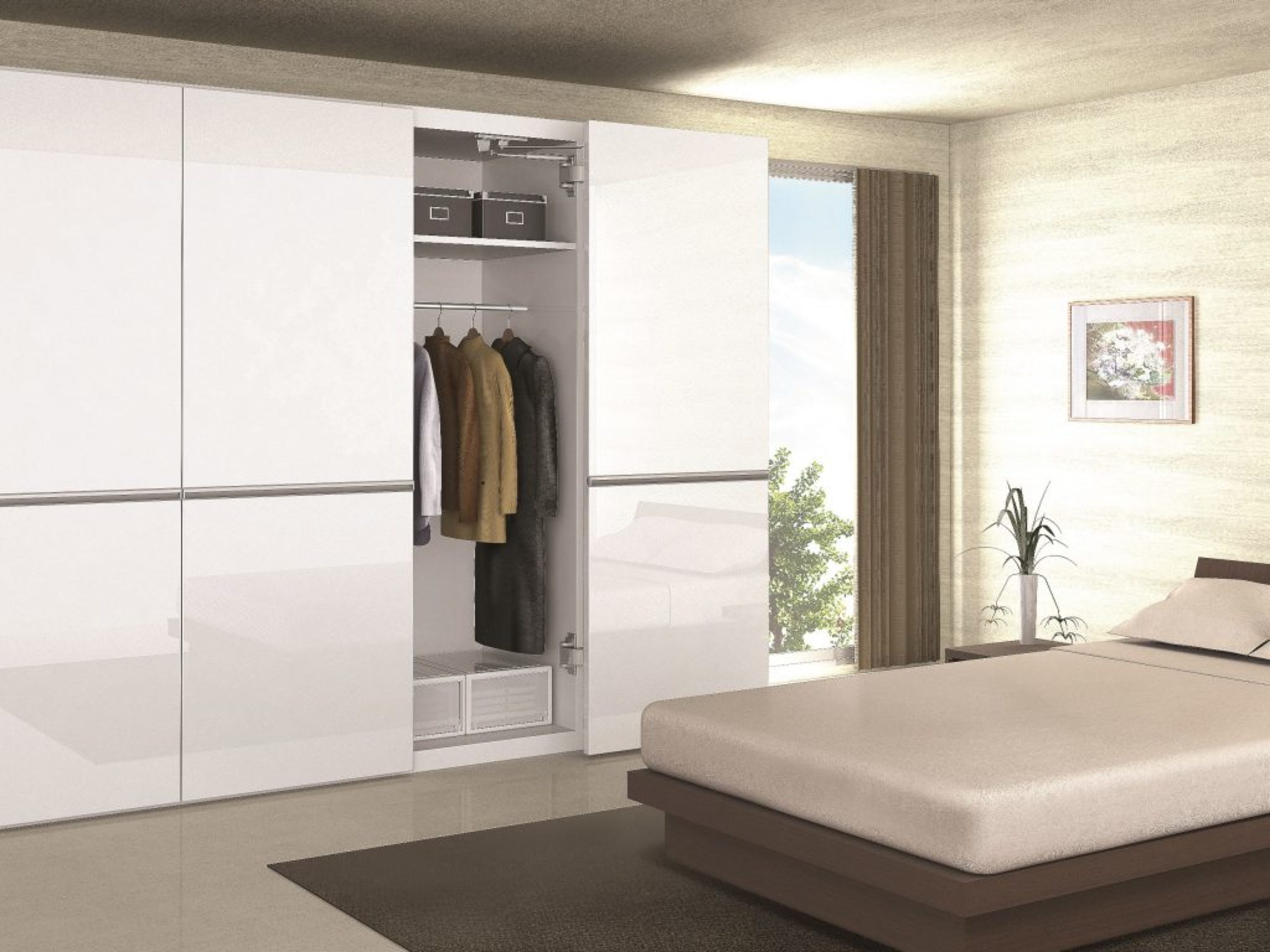

Lateral swing mechanism allows doors to open sideways in a small radius and then close flush to the wall. Ideal for compact spaces and applications in tight spaces.

Hardware moves door completely to provide full access to the opening
Easy Installation and adjustment.
Only 6 parts needed to install a lateral door.
Handle can be installed in any position of door.
Free stop and soft close features allow the door to be opened to any position and close.
4-Way Adjustable to ensure a proper fit.
Adjustment in vertical (±7 mm), horizontal (±7 mm), depth (±5 mm) and parallel (±3°).

• Door Width: 750 ～ 1100 (29-17/32 ~ 43-43-5/16")mm
• Door Height: Max. 2980 (117-21/64") mm
• Door Thickness: 24 ～ 40 (15/16 ~ 1-37/64")mm
• Door Weight:Max. 90 kg (198 lbs)/Door
