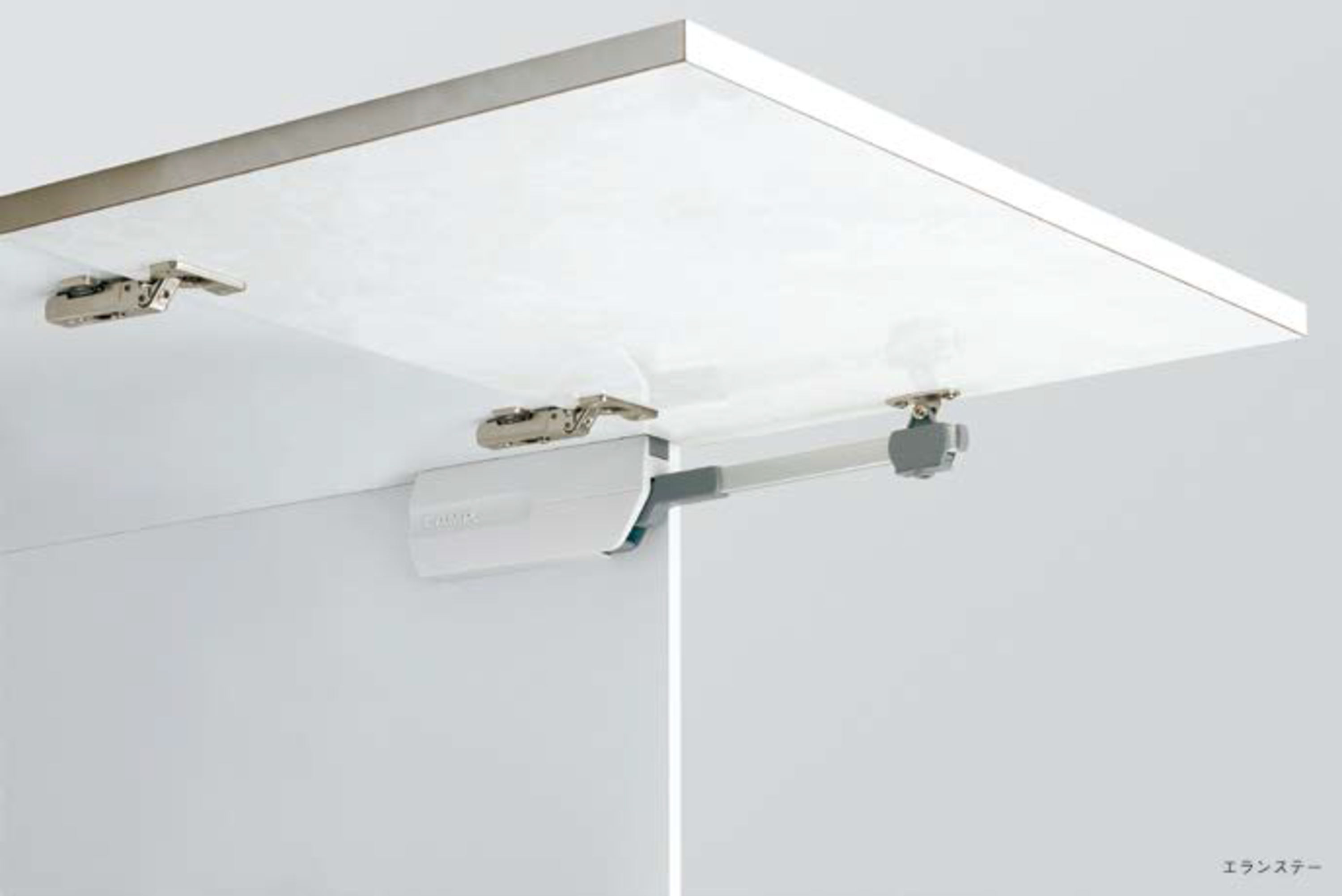

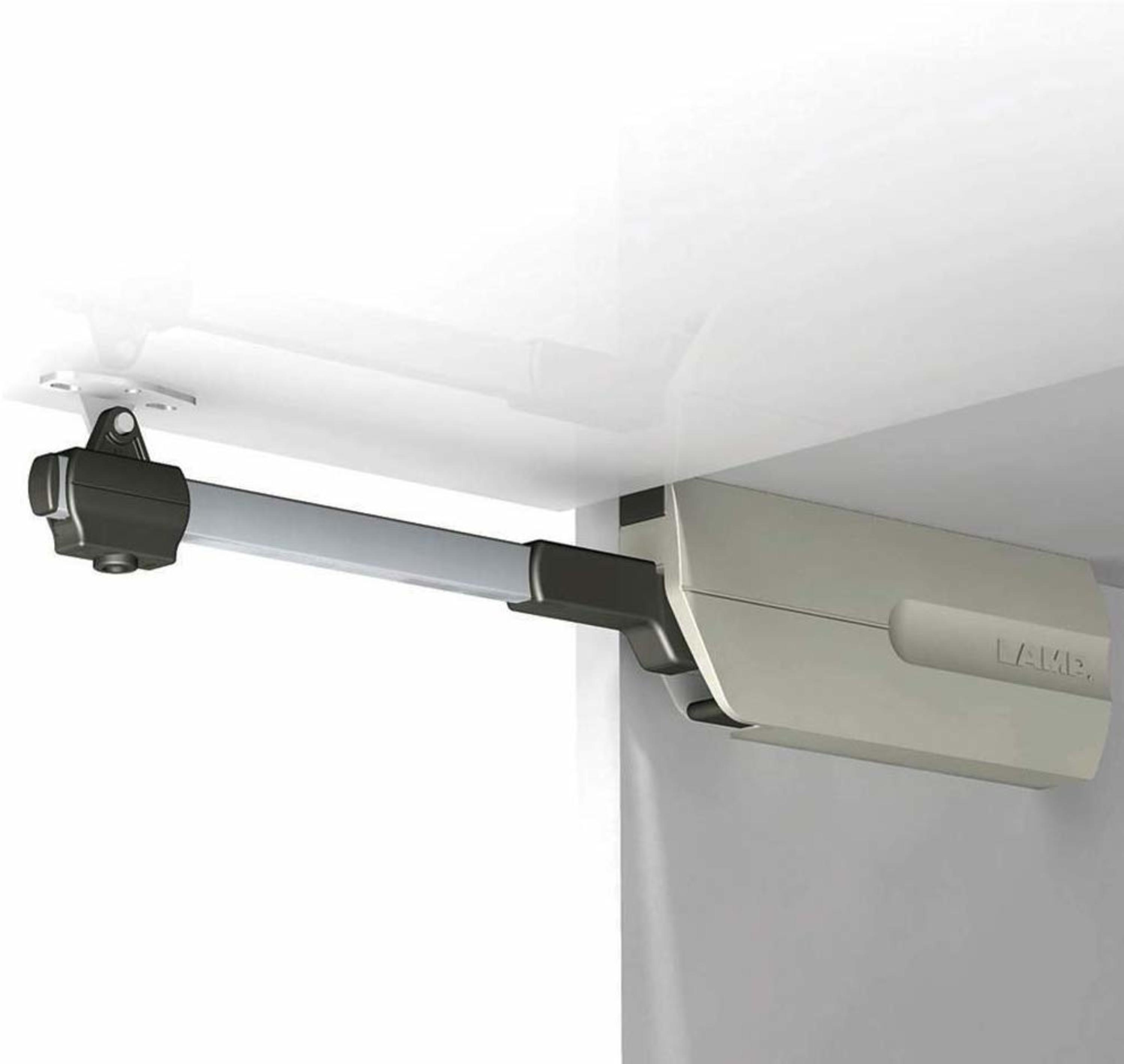

For upward-opening flap doors. Lift assist (to make flap doors feel lighter) Free stop (holds position at any angle from 30° to fully open) Soft-closing (slows down closing speed to prevent slamming between 0° and 30°)
Features • For upward-opening flap doors. • Equipped with: -Lift assist (to make flap doors feel lighter) -Free stop (holds position at any angle from 30° to fully open) - Soft-closing (slows down closing speed to prevent slamming between 0° and 30°) • Recognized by LGA for 40,000 cycles • Easy alignment: When doing an 19mm overlay install, simply press the body to the top of the interior of the cabinet and align the front plate flush with the cabinet. • Easy installation: Can be installed on both sides from the front. • Can be used singly or in pairs to accommodate a wide range of door sizes/ weights • Bracket (sold separately) available for aluminium frame flap doors. • Please contact us directly for information about what types of hinges can be used with SLS-ELAN
