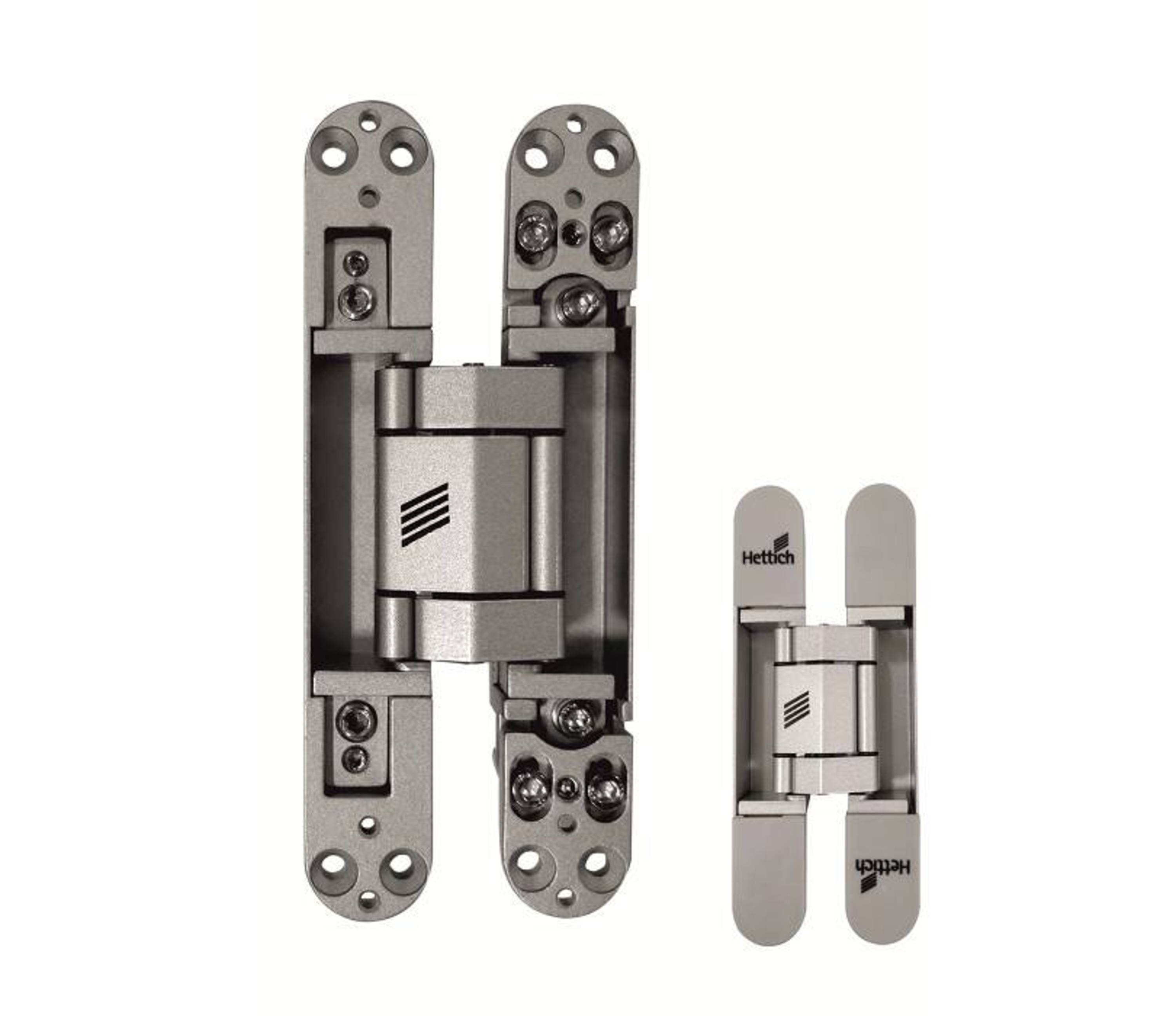

Soss Hinges - 3D Concealed hinges

A soss hinge is a concealed hinge that is used on inset doors. It is known as a type of invisible hinge because it cannot be seen when the cabinet door is closed. A soss hinge is an invisible hinge that is used on inset cabinet doors. It is completely concealed when the door is closed.


  • Length (C) : 150 / 177 / 246 mm

  • Material thickness (G) : 6.5 / 9 /9 mm

  • Pointed wood screw: Stainless steel M5 screws

  • Loading capacity: 40 / 80 / 120 kg/pair (Max. Width-1250 mm, Max. height-3000 mm)

  • Maximum opening angle: 180°

  • Minimum Door Thickness: 35 / 40 / 45 mm

  • 3-D adjustable Range: +/- 3 mm Up and down, +/- 2 mm Left and right +/- 1 mm Front and back

  • Material : Base - Zinc alloy, Connector- Aluminium alloy

  • Door types: Unrebated security

  • Left / Right useable

  • Door Material: Wooden Door } Frame types: Wood

  • Finish : Stainless Steel Satin

  • On request finishes: Bright Chrome, Antique Brass & Black
